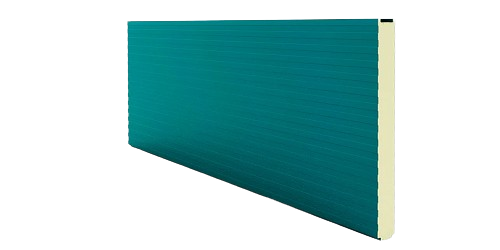

Double Groove Joinery Panel
Wall Panels
Wall Panel are tongue-n-groove joinery panels for air tight panel joints. It is an external panel for a building which has rigid polyurethane foam (PUR/PIR) between pre-painted hot dip galvanized steel sheets which has the best insulation as panel core and has a function preventing condensation by its excellent insulation performance and is a high-performance product equipped with constructability with its light specific gravity and safety against a fire and high strength.We manufacture two types of panels.
Benefits of Insulated Wall System are
It can be easily integrated with glazing, doors, windows and other wall opening arrangements without any complications.
It can be customized as per the requirements of the customer with minimum wastage.
A provision can be made anytime to the concealed wiring and conducting.
As per the requirements of the customer, a localised reinforcement can be provided.
Manufactured with high quality steel and aluminium
(sfpl-dwp-2005)
| Outer Skin Sheet | PPG/PPGI/ Bare GL/PVDF/PPAL |
| Inner Skin Sheet | PPGL/PPGI/ Bare GL/PVDF/ PPAL |
| Available Panel thickness | 60mm,80mm, 100mm, 120mm and 150mm |
| PUF Panel Length & Width | 12mtr and Above with 1mtr. Width |
| Average density | 40+/- 2 Kg/m3 |
| Thermal Conductivity | 0.024 W/m deg. C |
| Temperature range | -40 to +80 deg. C |
| Free from CFC | CFC free |
| Type of foam | B2, B3 & PIR |
