Continuous Sandwich Roof Panel (sfpl-rp-2005)
A durable and economical solution for many structures from factories to stadiums, from shopping malls to swimming pools. In addition to industrial buildings and social areas, the sandwich panel is becoming more and more preferred in the world with new application areas such as military buildings, agricultural buildings. prefabricated buildings, construction site buildings, Oil &: gas, Power Plant, Dairy plant, and residences.
ROOF PANEL
PUR and PIR insulated sandwich roof panels, which create high energy efficiency, comfortable and safe environments, comply with international standards, provide safe passage of the desired openings with 5-rib roof panels.

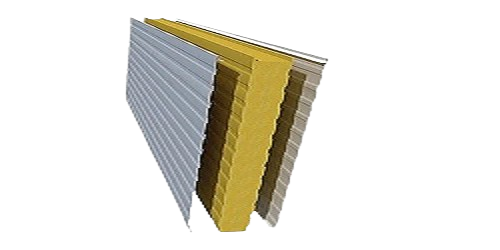

Roof panel with trapezoidal profile with top surface and ribbed liner inside the surface. Profile of Roof Panel is given below.
Outer Skin- 34 × 250mm trapezoidal profile with ribbed. Inner Skin- Ribbed Liner, Aluminum foil and Craft Paper.
Industrial Buildings
Cold Storage
Agriculture & Horticulture
Commercial Building
Residence Building
Meat Processing
Warehouse
Dairy Industries
Defense
Oil & Gas
Power Industry
(SEL-RF_2005)
| Outer Skin Sheet | PPGL/PPGI/ Bare GL/PVDF |
| Inner Skin Sheet | PPGL/PPG/ Bare GL/PVDF/ PPAL/ Alu Foil/ Craft Paper |
| Available Panel thickness | 30mm,40mm,50mm,60mm,80mm, 100mm and 120mm |
| PUF Panel Length & Width | 12mtr and Above with 1mtr. Width |
| Average density | 40+/- 2 Kg/m3 |
| Thermal Conductivity | 0.024-0.03 W/m deg. C |
| Temperature range | -40 to +80 deg. C |
| Free from CFC | CFC free |
| Type of foam | B2, B3 & PIR |
