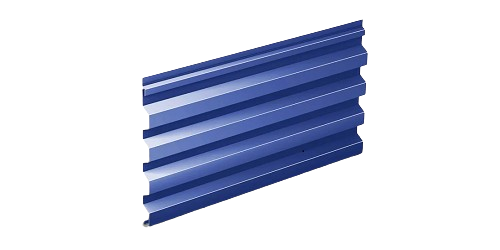

Concealed Fastener Wall Panel (sfpl-cfwp-2005)
The concealed taster is an optimized-to-realize and elegant landscape with diverse patterns along with convenient and economic construction methods by removing the exposure of joints of bolts (screws). These panel are used as non-load bearing panels for residential and commercial buildings, schools, and training centres. structure, models and monolithic cabinets, management blocks and site office, guard room, port cabin, etc.
Benefits of Insulated Wall System are
It can be easily integrated with glazing, doors, windows and other wall opening arrangements without any complications.
It can be customized as per the requirements of the customer with minimum wastage.
A provision can be made anytime to the concealed wiring and conducting.
As per the requirements of the customer, a localised reinforcement can be provided.
Manufactured with high quality steel and aluminium
(SFPL-CFWP-2005)
| Outer Skin Sheet | PPGL/PPGI/ Bare GL/PVDF/PPAL |
| Inner Skin Sheet | PPGL/PPGI/ Bare GL/PVDF/ PPAL |
| Available Panel thickness | 40mm, 50mm, 60mm, 80mm and 100mm |
| PUF Panel Length & Width | 12mtr and Above with 1mtr. Width |
| Average density | 40+/- 2 Kg/m3 |
| Thermal Conductivity | 0.024-0.03 W/m deg. C |
| Temperature range | -40 to +80 deg. C |
| Free from CFC | CFC free |
| Type of foam | B2, B3 & PIR |
